BGD-160

BGD-160

The BGD-160 guided auger boring drill rig is a kind of underground pipe linelaying machine, lately developed by our company, which is energy saving, efficient

and flexible in use.The optical guiding technique has been used in the drill rig for laying the pipesaccurately hit preset target. Fully meet preset azimuth requirement.The drill rig find its usage in pipe line laying for municipal underground waterdraining pipe line, heat supply pipe line, gas supply pipe line, water supply pipe linepower supply or communication cable underground passage construction and so on. Nodisruption for surface traffic and other facilities while pipeline installation with this guidedauger boring drill rig. lt can also be used for pipe shed support project of tunneling andrailway bed consolidation.






鉆機參數表

Engine

發動機



DCEC

東風康明斯


6CTA8.3-C215

Rated output at 2200 rpm

額定功率

kw

160

Electric system

電氣系統

V

24

Fuel tank capacity

燃油箱容積

L

380

Hydraulic system

液壓系統

Mpa

26

Auxiliary hydraulic system pressure

輔助液壓系統壓力

Mpa

20

Hydr. oil tank capacity

液壓油箱

L

850

Max. torque at low speed

低速最大扭矩

Nm

28000

High rotating speed

高速轉速范圍

r/min

0-54

Low rotating speed

低速轉速范圍

r/min

0-27

One step stroke

單步頂進行程

mm

1200

Spindle clearance to ground

中心高

mm

650

Rotary head drifting distance

動力頭浮動行程

mm

320

Pushing  speed

推進速度

m/min

0-0.4

Pushing force

推進力

t

160

Duct tube diameter(optional)

鉆機適應鋪設管徑

mm

Φ400-Φ800

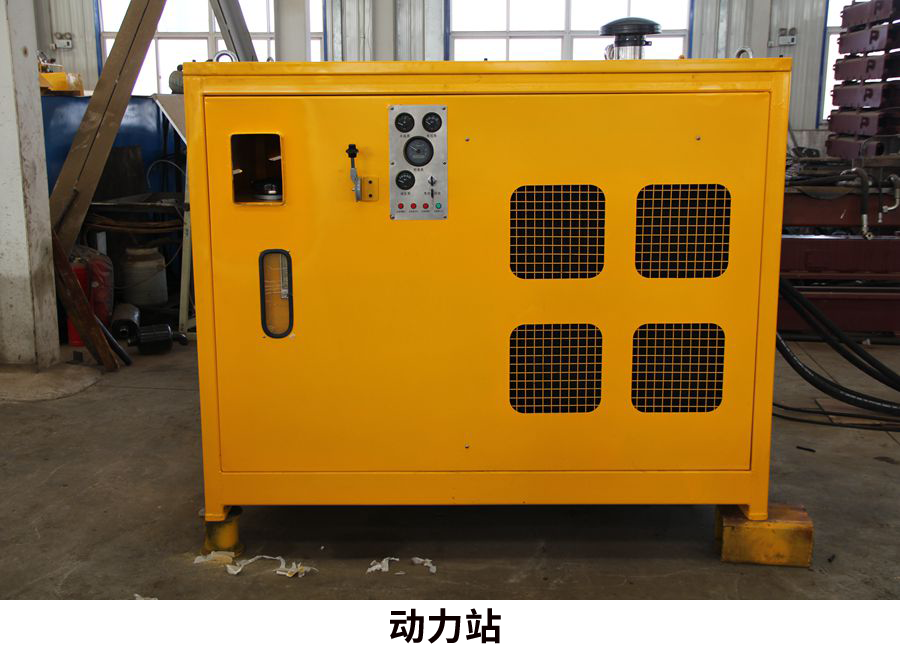

Dimension of power pack

泵站尺寸

mm

2280*1890*1650

Power pack weight

泵站重量

Kg

2800
